Well Pressure & Filtration System Upgrade

This project involved correcting and improving a previous installation completed by another contractor.

Ralph’s upgrades included the addition of an 81-gallon pressure tank to eliminate well pump cycling, as well as relocating the softener brine tank for better accessibility. The electronic controls were raised to create additional usable wall space and improve overall organization.

We also relocated and installed isolation valves on both the Big Blue canister filters and the ultraviolet filtration system to enhance serviceability. A platform was built to reposition the 40-gallon pressure tank for the booster pump, further optimizing the layout.

The end result is a clean, efficient, and service-friendly system that also frees up valuable garage space for the client’s side-by-side

Project Highlights

  • Improved System Efficiency

    Added an 81-gallon pressure tank to reduce well pump cycling, improving performance and extending equipment lifespan.

  • Service-Friendly Design

    Repositioned filtration systems and added isolation valves to simplify maintenance and reduce downtime during servicing

  • Clean Layout & Space Optimization

    Reorganized equipment and elevated controls to create a streamlined system while freeing up valuable garage space

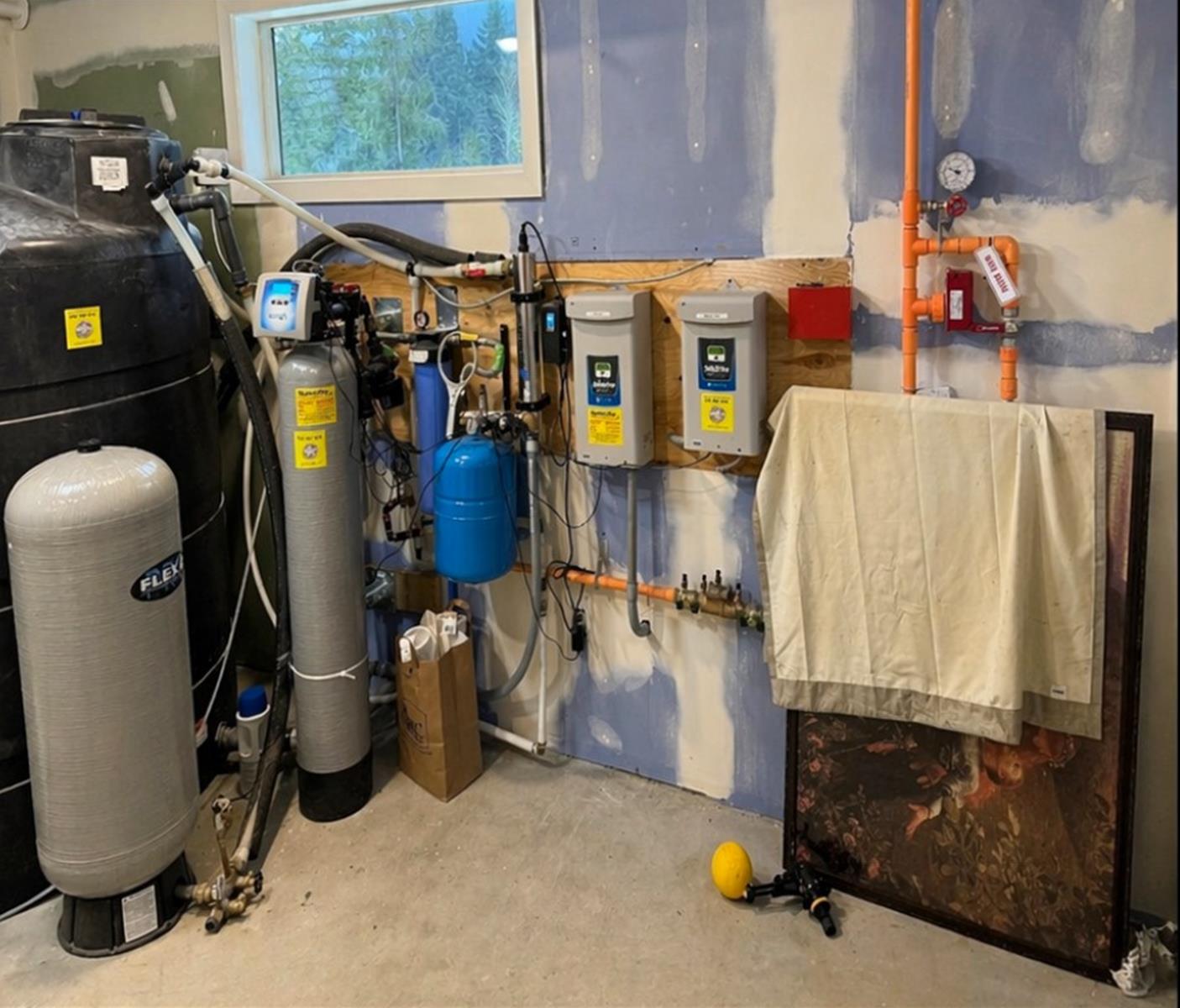

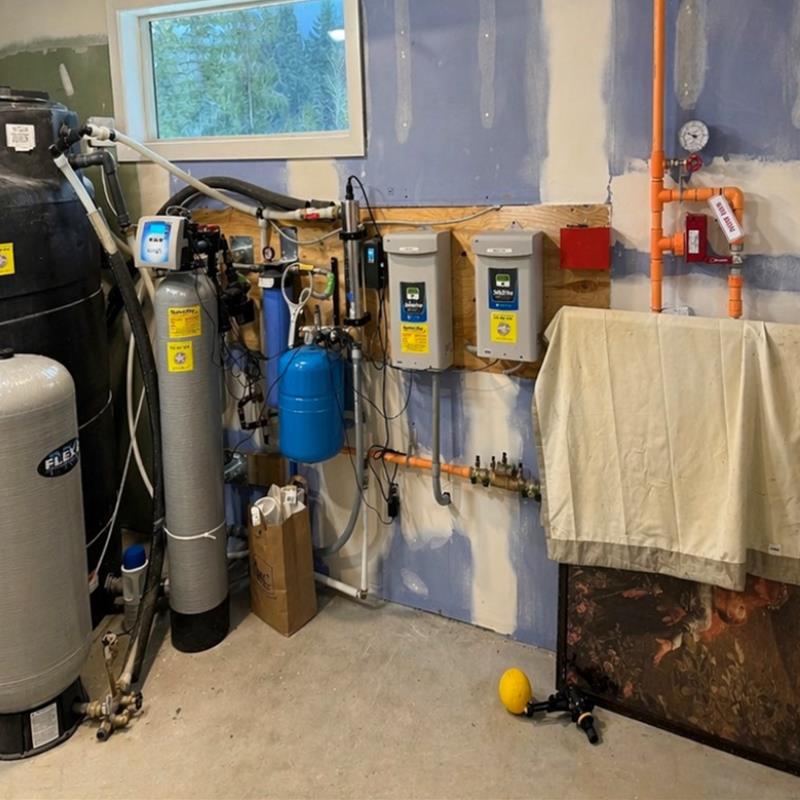

Before

Crowded, inefficient layout with limited access to key components
03-before

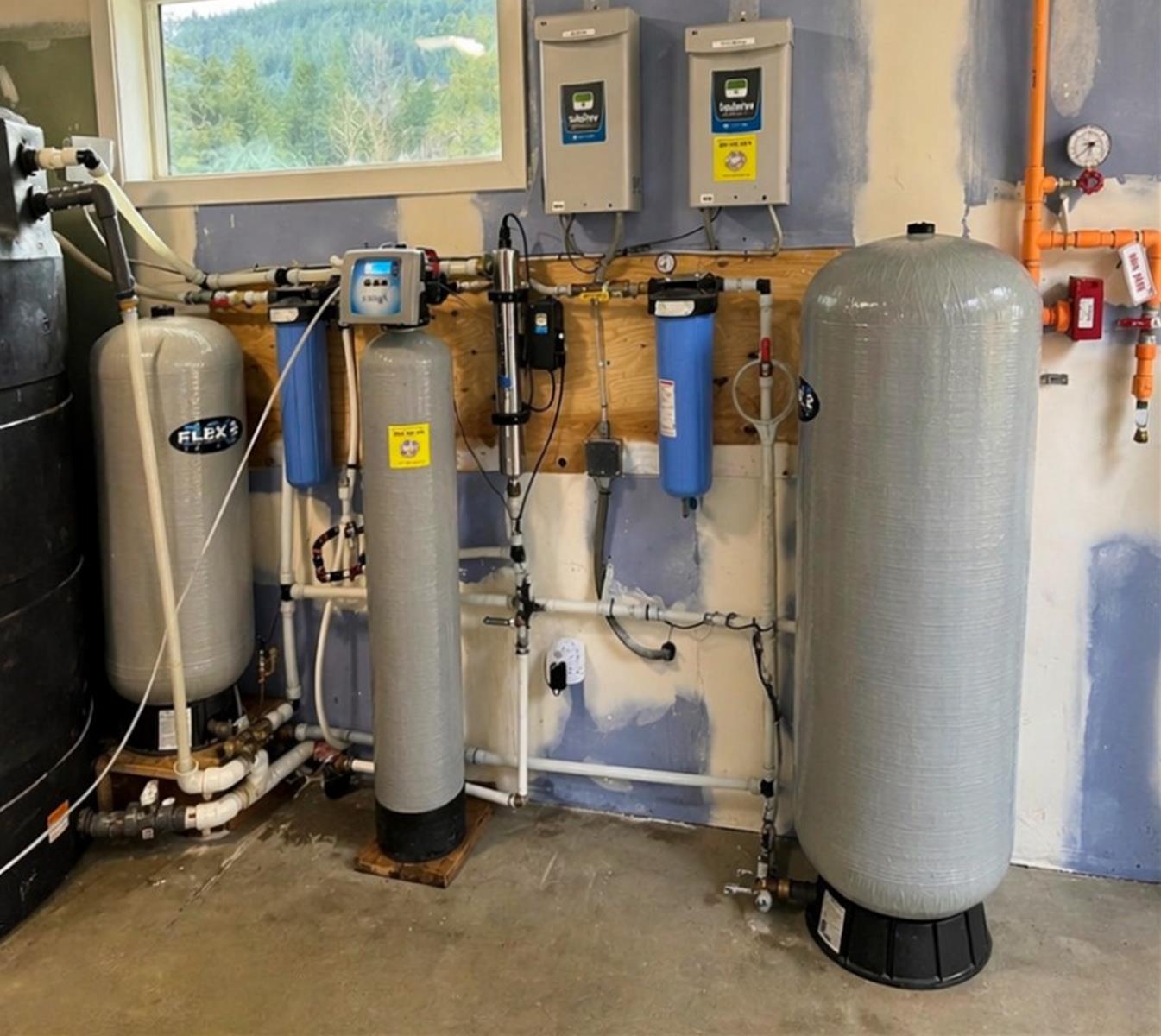

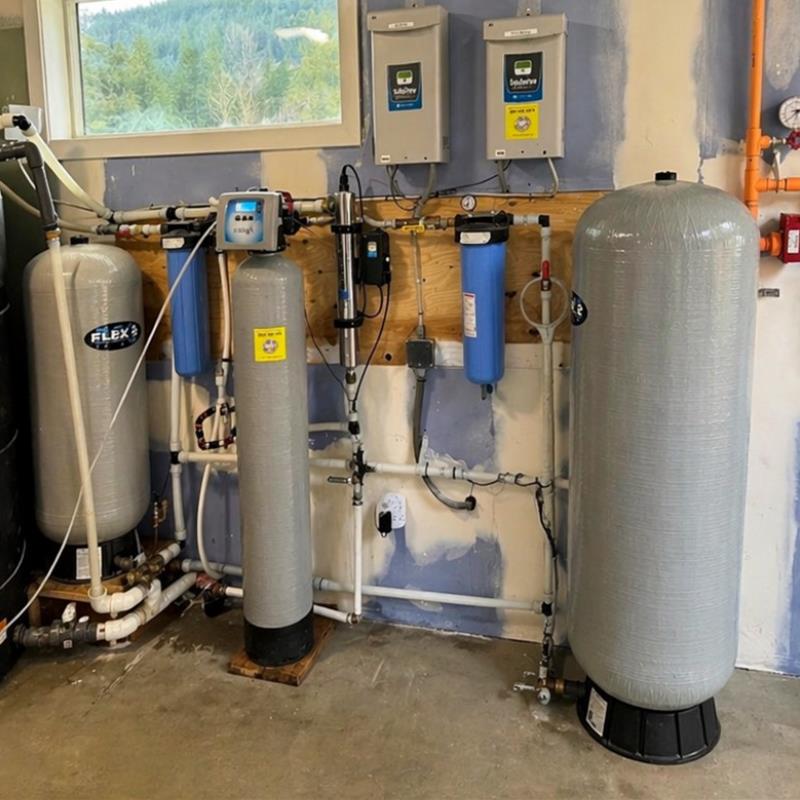

After

Organized system featuring a new 81-gallon pressure tank, providing more garage space
03
